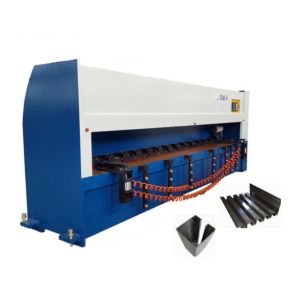

Semi-Closed Loop Control Vertical Sheet Metal Grooving Machine for Door Processing
- Model NO.: QL-V SERIES
- Process Usage: Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
- Control Method: Semi-Closed Loop Control
- Processing Precision: 0.01~0.02(mm)
- Certification: CE, ISO 9001, Nr12
- Voltage: 220V/380V/400V
- Machine Body: Steel Plate Welded Structure
- Ball Screw: Forged Steelwork 45, Nitrogen Treatment
- Cam Controller: Has 8 Proximity Switches, Reliable Performance
- Hydraulic Components: Acb Oil Seal
- Specification: 3000-6000mm
- Application: Metal Door Processing
- Movement Method: Linear Control
- Numerical Control: CNC/MNC
- Performance Classification: High-End CNC Machine Tools
- Main Motor: Siemens Electrical
- Work Table, Flywheel, Slider: Cast Ht200,Anneal Treatment
- Main Power: Siemens Electrical
- AC Contactor,Switches, Buttons, Lights: Schneider Electric SA
- Pneumatic Component: Dual Valve
- Transport Package: Standard Packing
- HS Code: 84629190
CNC Metal V Groover Machine
The structure of the CNC Metal V Groover Machine
This equipment is fully CNC V Groover Machine for metal sheet. It adopts advanced CNC system and innovative design with the advantages of high processing precision, simple operation, no noise, no vibration and so on. It is widely used in the sheet metal V-groove, U-groove and other irregular groove processing(including stainless steel, aluminum, aluminum plate, copper, iron, plastic, wood, acrylic panels and other special plates.). Particularly, it is applicable to the V-groove processing of sheet metal before bending .
The clutch gives continuous strokes for mass production.
1.The Press adopts the low inertia combined dry pneumatic friction clutch and brake from OMPI, Italy, Smoother pres
s performance, easier maintenance, to ensure reliable safety and flexible action,Iow noise, long service life.
2.Driving gear is installed into the frame and gear is immersed in oil reservoir. Customer could choose Electromagnetic
governor. which is stepless speed regulation within a certain range and enlarge the area of craf.
3.Use adopts dual valve from TACO, Japan, which can guarantee the safety and reliability of clutch.
4.Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact;
5.The press adopts cam controller which be combined with proximity switch (Schneider) which will realize the synchronous
detection and monitoring reliably.
Technical Specifications
| |
Technical parameters |
3200mm |
4000mm |
5000mm |
6000mm |
| 1 |
Thickness (mm) |
0.4-6 |
0.4-6 |
0.4-6 |
0.4-6 |
| 2 |
Length(mm) |
3200 |
4000 |
5000 |
6000 |
| 3 |
Width of sheets (mm) |
100-1500
Optional |
100-1500
Optional |
100-1500
Optional |
100-1500
Optional |
| 4 |
Grooving speed(m/min) |
15-60 |
15-60 |
15-60 |
15-60 |
| 5 |
Plate speed (m/min) |
0.5-5 |
0.5-5 |
0.5-5 |
0.5-5 |
| 6 |
Y axis Minimum unit |
0.01 |
0.01 |
0.01 |
0.01 |
| 7 |
Y axis Minimum positioning accuracy |
0.05 |
0.05 |
0.05 |
0.05 |
| 7 |
Z axis Minimum unit |
0.01 |
0.01 |
0.01 |
0.01 |
| 9 |
Z axis Minimum positioning accuracy |
±0.01 |
±0.01 |
±0.01 |
±0.01 |
| 10 |
X axis Motor power(kw) |
W=3 |
W=3 |
W=3 |
W=3 |
| 11 |
Y axis Motor power(kw) |
W=2 |
W=2 |
W=2 |
W=2 |
| 12 |
Z axis Motor power(kw) |
W=0.4 |
W=0.4 |
W=0.4 |
W=0.4 |
| 13 |
Air pressure (Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
| 14 |
Dimension (L*W*H) |
5200*2100*2300 |
6000*2100*2300 |
7000*2200*2300 |
8000*2200*2300 |
| 15 |
Weight |
9 ton |
11ton |
14ton |
16ton |
| 16 |
Shipping |
20GP |
40GP |
40GP |
40GP |
